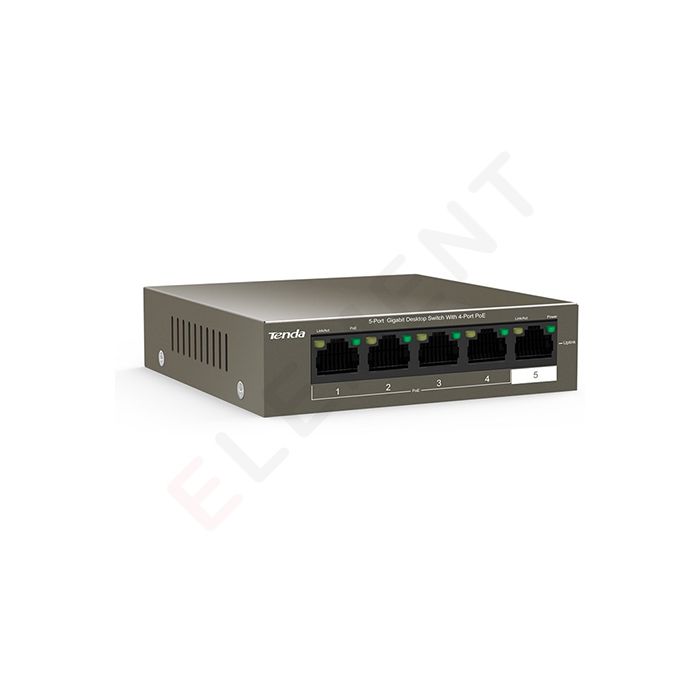

Tenda TEG1105P-4-63W

TEG1105P-4-63W - 5XGIGABIT (4XPOE) PORTS (58W) TEG1105P-4-63W is a Tenda PoE switch that offers 5*10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras. Standard&ProtocolIEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at MTBF≥100,000hours Indicator5*Link/Act per device 4*PoE per device 1*Power per device Interface4 10/100/1000Base-T ports(Data/Power) 1 10/100/1000Base-T port(Data) Lightning Protection6KV Store & ForwardYes exchange capacity10 Gbps Packet Forwarding Rate7.44Mpps RAM Data Buffer1Mb MAC Address Table2K PoE supply managementPort 1 to Port 4 support IEEE802.3at/af PoE standard PoE through pin1 2 4 5 +，3 6 7 8 - Input VoltageAC：100-240V～ 50/60Hz Dimension100*100*26mm ( W x D x H ) Power Consumptionin full configuration：<63W PoE Max Power Supply：58W Port FeaturesStandard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。 EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
